What Is a COB Wallpaper LED Display



A COB (Chip on Board) wallpaper LED display is a display technology in which LED chips are directly mounted onto the circuit board rather than packaged individually, resulting in an ultra-thin, low-voltage screen that can be mounted almost like wallpaper. Shenzhen Canmingxing Technology Co., Ltd., operating under the brand Whaley LED, has built its COB Wallpaper Screen around this architecture, targeting premium commercial and professional environments where minimal thickness, light weight, and high image quality are non-negotiable requirements.

Understanding this product category matters because traditional LED screens typically require sending/receiving cards, driver ICs, signal modulation, and logic control — a chain of components that adds thickness, weight, and complexity. Conventional displays are also often too heavy and thick for space-constrained interiors, and many fail to deliver the static contrast needed for close-range viewing in settings such as meeting rooms and command centers. The COB Wallpaper Screen was engineered specifically to address these three pain points.

Core Advantages of the COB Wallpaper Screen by Whaley LED

Ultra-Thin, Lightweight Construction The COB Wallpaper Screen has an overall thickness of 15mm or less and a single cabinet weight of just 2.5kg. This makes wall-mounted installation practical even in interiors where space is limited, without the structural reinforcement that heavier panels demand.

Direct-Drive Simplicity Unlike conventional systems, this product uses a direct-drive architecture with no sending/receiving cards and no driver IC signal modulation or logic control. Removing this layer of hardware reduces system complexity and the number of potential points of failure, which simplifies both installation and long-term maintenance.

High Contrast and Color Accuracy A patented pure black coating formula gives the screen a contrast ratio of ≥100,000:1, and the product is Nationally Certified to the HDR3.0 standard, delivering more vivid colors and richer detail at identical resolution. Combined with a refresh rate of ≥3,840Hz and a viewing angle of ≥178° (H/V), the screen is well suited to close-viewing environments where image clarity is scrutinized.

Safety and Protection Performance The screen operates on a 24V DC low-voltage design, eliminating safety hazards and electrical interference. It is also built to resist shock, collision, moisture, water, dust, static, and oxidation, and it uses eco-friendly full flip-chip packaging for superior heat conduction and faster heat dissipation, resulting in an ultra-low operating temperature and higher energy efficiency at equal brightness.

The product line spans three pixel pitch models — W-COB-P0.9375, W-COB-P1.25, and W-COB-P1.5625 — with pixel densities ranging from 409,600 to 1,137,777 dots/m², a cabinet size of 600×337.5mm, brightness from 0-1000 cd/m², 36-bit gray scale, brightness uniformity of ≥99%, cabinet flatness of ≤0.05mm, power consumption of 100 W/m², adjustable color temperature from 1000-24000K, full front maintenance access, and an operating range of -20°C to 55°C with 10%-90% RH humidity tolerance. Free seamless splicing supports 1080P, 2K, 4K, and 8K resolutions in arbitrary configurations, allowing display sizes to scale without a visible seam.

Where COB Wallpaper Screens Deliver the Most Value

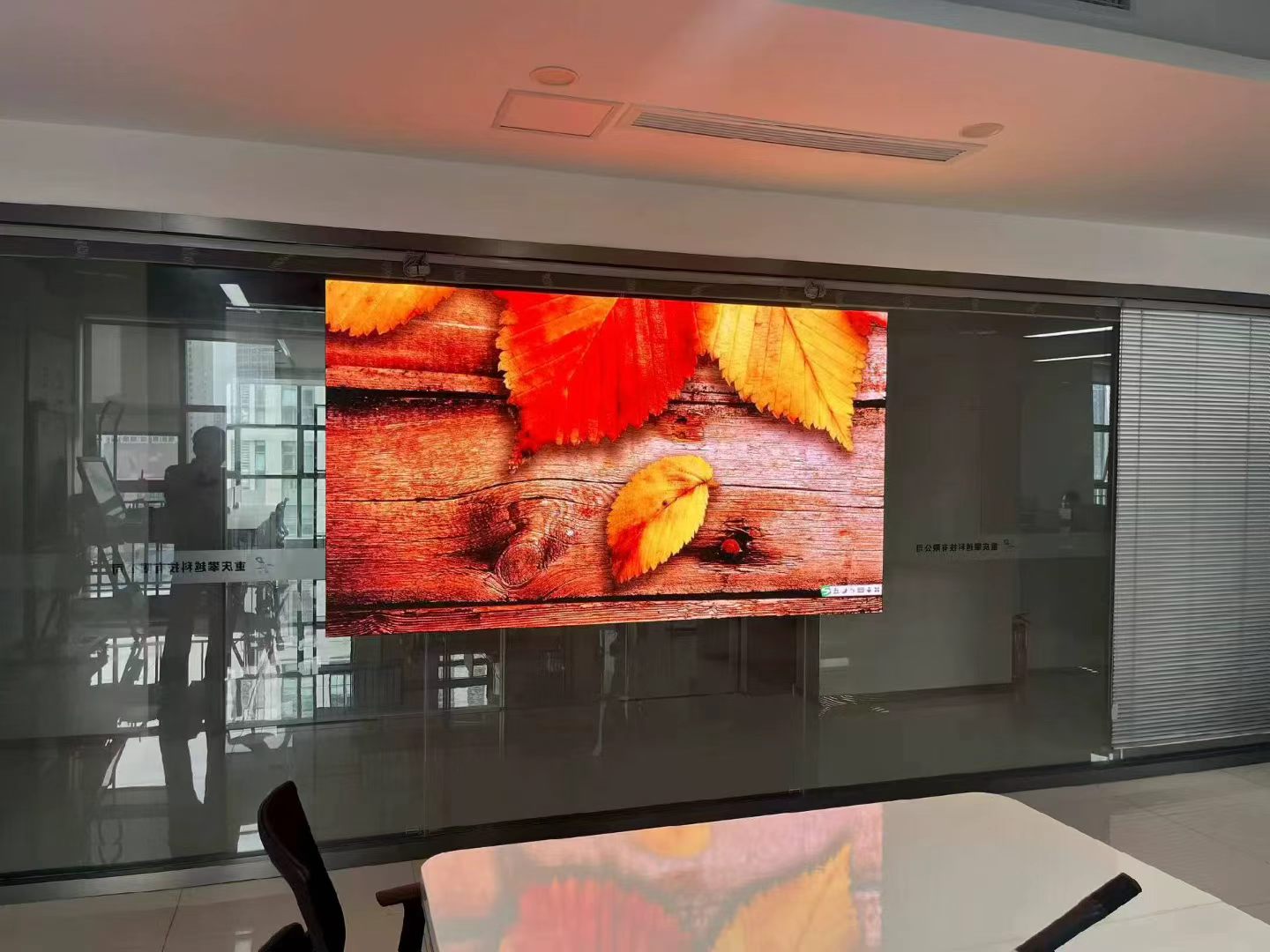

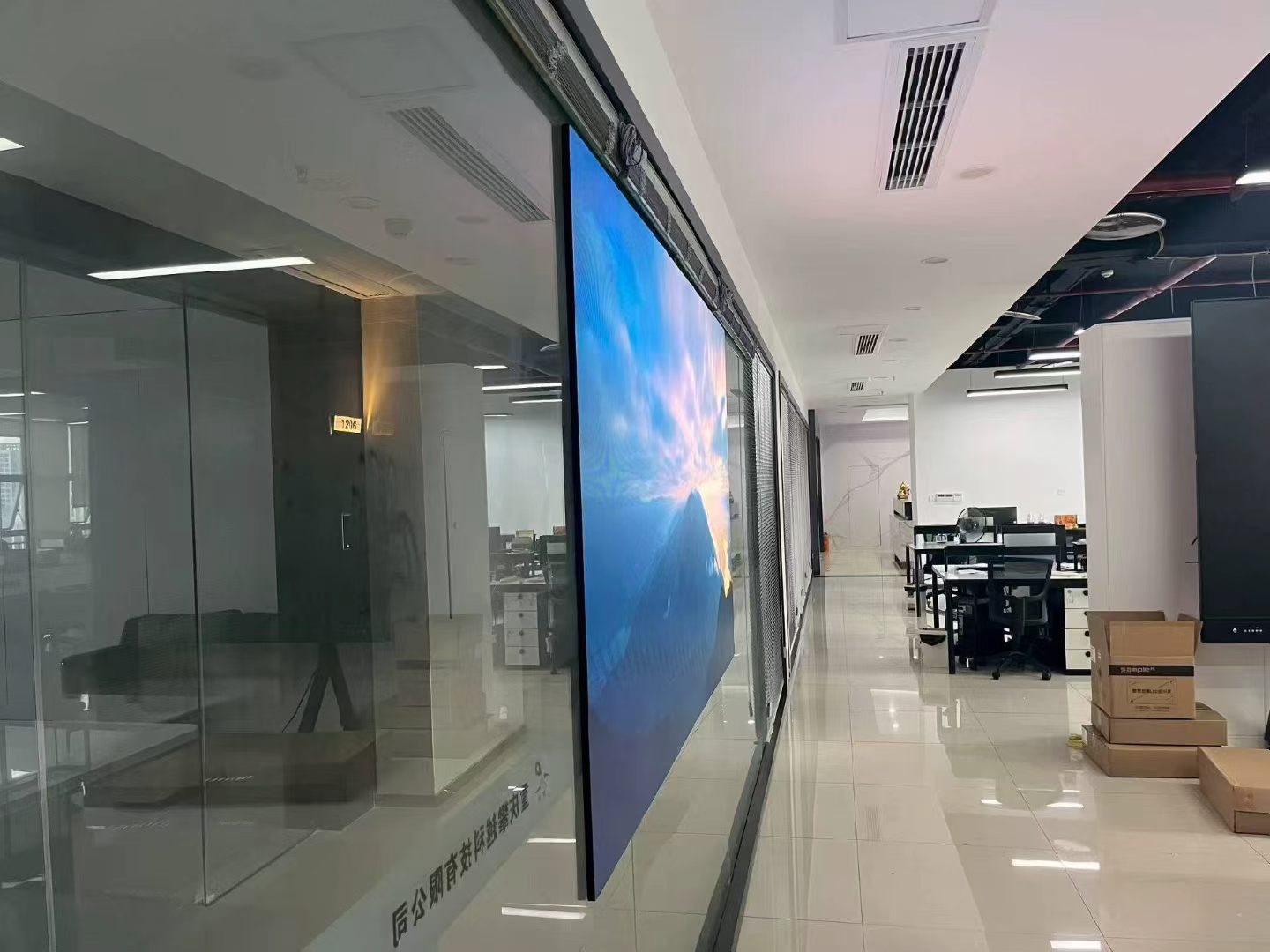

Based on its design characteristics, the COB Wallpaper Screen is best suited to permanent or semi-permanent installations: shopping malls, premium meeting rooms, monitoring and command centers, classrooms, home theaters, and art galleries. In these settings, the combination of thinness, direct-drive reliability, and high static contrast provides a display experience that blends into architectural space rather than dominating it.

Matching Rental and Event Requirements: Whaley LED’s Rolling Screen Series

For organizers specifically searching for a display solution suited to rental and event use — where screens must be deployed, struck down, and transported repeatedly — Whaley LED’s broader LED Rolling Screen Series is engineered for exactly this scenario, built on GOB (Glue on Board) technology for portability, protection, and quick setup at events, stages, retail shelves, gateways, and outdoor cinema applications.

Rolling Fast: Auto-Lifting LED This product is positioned for temporary events such as weddings, press conferences, and parties that need a screen requiring no installation or debugging. It offers a one-button electric lift housed in an integrated flight case, plug-and-play operation, a 36V/24V DC safe power supply, and an IP65 waterproof rating on the front (IP41 on the rear). Configurations range from a 4.5 m² P15 model (H 3m × W 1.5m) to a maximum 20 m² custom configuration (up to 6m × 3m), with flight case dimensions and total weight scaling accordingly (350kg to a maximum of 800kg).

WArt-R Series Roll-Up Products This ultra-thin, foldable and rollable series uses an HOB solution and is built on a 17mm aluminum alloy structure with 24V-48V low-voltage DC input for enhanced safety. It offers a 140°-160° wide viewing angle, magnetic back assembly for quick installation without support feet, screwless high-precision surfacing for seamless splicing, and a super load capacity of 2000 kg/m² (tested to 5,000 kg pressure). Seven pixel pitch models (WA-R0.7 through WA-R3.9) cover brightness levels from 400 to 600 nits, a refresh rate of 3,840-7,680Hz, and IP54/IP21 protection, making the series adaptable across commercial spaces, cultural and entertainment venues, transportation hubs, residential and office spaces, and education settings.

Together, these two lines mean that Whaley LED can address both ends of the display spectrum discussed above: the COB Wallpaper Screen for fixed, high-contrast, ultra-thin installations, and the Rolling Screen Series for the portability, rapid setup, and protective transport that rental and event use cases demand.

A Company Built on Twelve Years of Display Innovation

Whaley LED, operated by Shenzhen Canmingxing Technology Co., Ltd., has spent 12 years developing its flagship display technologies, becoming a manufacturer known for carbon fiber screens in the domestic market and now expanding into European and American markets as of 2025. The company’s development history includes mastering 1.9mm fine-pitch LED rental display technology and the GST-SMD GOB process in 2017, obtaining CE, FCC, and RoHS certifications in 2018, and reaching 38 core patents (including 23 invention patents) alongside National High-Tech Enterprise certification in 2021. With 12 years of project management experience, the company has undertaken stage lighting design projects for numerous Chinese television stations and cultural and tourism landmark projects across multiple cities, and it has extended its distribution network into more than 50 countries and regions.

Choosing the Right Whaley LED Solution

For buyers comparing COB wallpaper LED displays against the practical demands of rental and event work, the decision ultimately comes down to installation context. Permanent premium venues — command centers, galleries, classrooms, meeting rooms — benefit most from the COB Wallpaper Screen’s thinness, contrast, and direct-drive reliability. Temporary and mobile event scenarios are better matched to the Rolling Fast and WArt-R product lines, which were purpose-built for repeated setup, transport, and outdoor durability. Whaley LED’s coverage of both categories, backed by full front maintenance support, cloud-based remote screen control, and compatibility with Nova, Colorlight, and Magnimage control systems, gives organizations a single manufacturer to evaluate across the full range of fixed and rental display requirements.
