Offshore wind converter frames operate in one of the harshest electrical and environmental environments in modern power generation. Salt-laden humidity, constant vibration, and high-voltage power conversion combine to create conditions where standard insulation materials fail—leading to current leakage, arcing, and structural fatigue. For engineers and procurement teams sourcing insulation laminates for these applications, the material choice directly determines converter reliability and long-term maintenance costs.

Why Offshore Wind Converter Frames Demand Specialized Insulation

Wind power converters sit at the interface between the turbine’s variable electrical output and the grid’s stable frequency requirements. Inside the converter housing, insulation panels and structural brackets must withstand continuous electrical stress, humid coastal air, and mechanical loads from turbine vibration. Any material that absorbs moisture or loses dielectric strength over time introduces the risk of insulation breakdown, which in an offshore setting means costly, difficult-to-access repairs.

This is where high-grade epoxy glass laminates become essential. Shenzhen Xiongyihua Insulation Materials Co., Ltd., operating under the brand XYH Plastic Insulation, has built its core business around solving exactly this category of industrial pain point: components that require simultaneous high mechanical strength, chemical resistance, and thermal insulation in environments where standard plastics fail under high-voltage or extreme conditions.

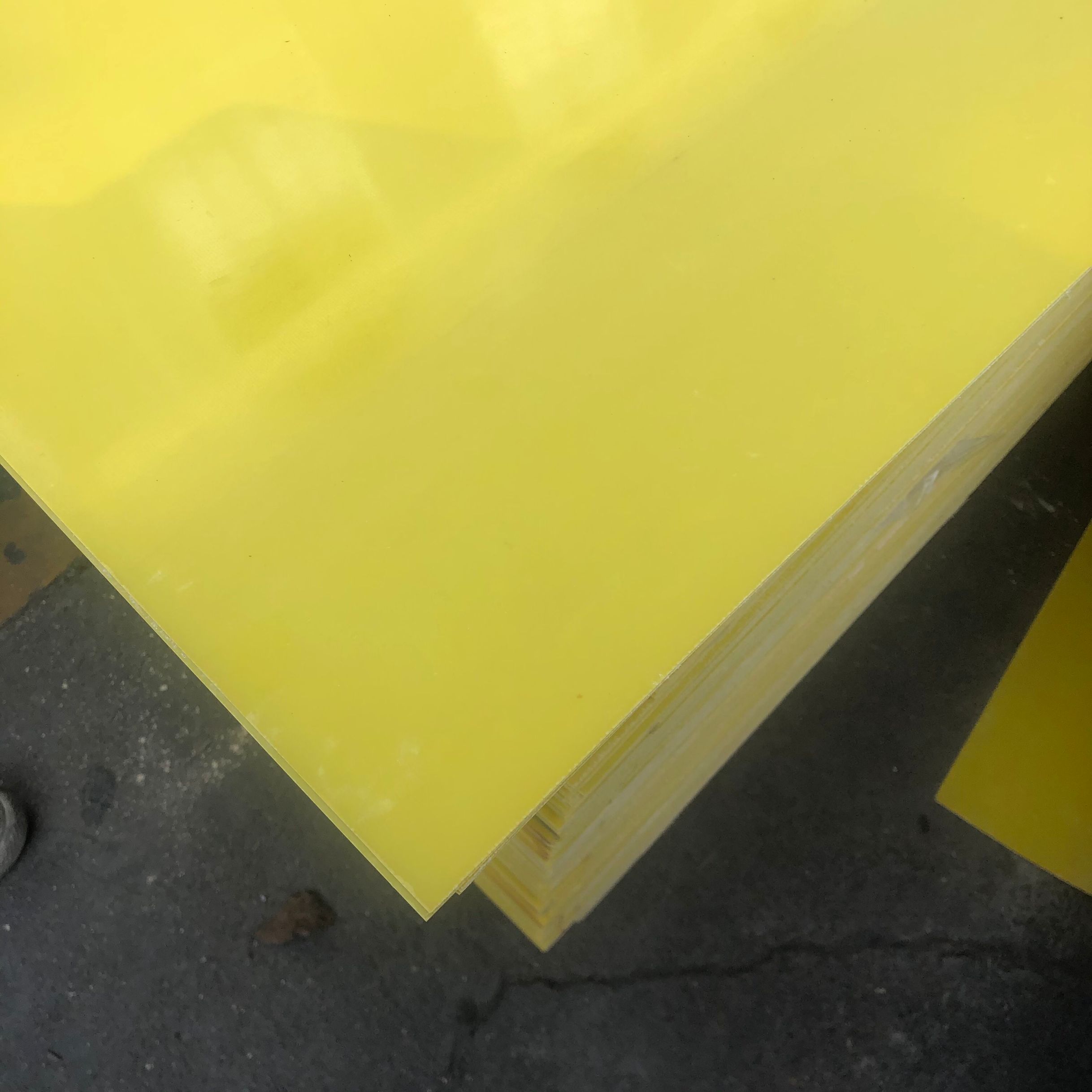

3240 Epoxy Glass Laminated Sheet: A Fit for Humid, High-Voltage Environments

Among XYH’s epoxy fiberglass product line, the 3240 Epoxy Glass Laminated Sheet is positioned as a standard, highly reliable industrial-grade insulation sheet for electrical and mechanical applications—precisely the profile needed in converter housings exposed to humid, high-voltage conditions.

Its technical performance addresses the core risks in offshore wind applications directly:

• Electrical Reliability: Dielectric strength perpendicular to laminations is ≥10.2 KV/mm, which prevents high-voltage breakdowns inside sealed converter enclosures.
• Mechanical Support: Flexural strength perpendicular to laminations reaches ≥340 MPa under normal conditions, providing rigid structural support for frame components subject to vibration.
• Moisture Resistance: The sheet maintains an insulation resistance of ≥5.0×10^8 ohms even after water immersion, directly addressing the salt-air humidity that offshore installations face continuously.
• Thermal Stability: Reliable operation across 110°C to 120°C extends the lifetime of high-heat converter machinery.

These characteristics are not incidental—the 3240 Epoxy Glass Laminated Sheet is compliant with the EPGC201 type under the IEC 60893 standard, a recognized international benchmark for laminated insulation materials. In XYH’s own benchmark case, a regional power grid equipment manufacturer upgrading transformer insulation panels achieved a 30% reduction in breakdown failures and a 25% improvement in structural reliability in high-humidity areas—outcomes that translate meaningfully to offshore wind converter frame applications facing similar humidity and voltage stress.

Beyond Standard Grades: EPGC High-Performance Options for Extreme Conditions

For converter frame designs requiring higher thermal classes or certified public safety compliance, XYH’s EPGC High-Performance Epoxy Sheets series (EPGC201 through EPGC308) offers additional engineering headroom. These laminates are built to meet rigorous international standards, including IEC and NEMA specifications, and are particularly relevant where converter components sit near traction motors, power reactors, or other high-heat-load subsystems.

Key technical distinctions within this series include:

• F-Class and H-Class Heat Resistance: EPGC203 (G11) and EPGC308 operate continuously at ≥155°C and ≥180°C respectively, preventing material softening in extreme thermal environments that can occur near converter power electronics.
• High Tracking Index: EPGC306 (G11 CTI600) prevents tracking index degradation under high electrical voltages, reducing short-circuit hazards—a critical consideration given the continuous high-voltage operation of wind converter systems.
• Roving Fabric Reinforcement: EPGC205 (G11R) uses continuous woven-glass fiber roving to deliver high tensile and impact resistance, suited to structural brackets subject to mechanical loading.

All EPGC variants carry a stable glass transition temperature (Tg) exceeding 170°C and are certified under GB/T 1303.4 and IEC 60893, giving specification engineers a verifiable technical basis for material selection in renewable energy equipment.

Manufacturing Capability Matched to Custom Converter Frame Geometries

Converter frame components rarely conform to standard sheet dimensions. XYH addresses this through an integrated manufacturing model that combines in-house sheet production with over 100 advanced CNC engraving machines, enabling custom fabrication rather than raw material supply alone. This is supported by a 5,000-square-meter warehouse holding over 1,000 tons of raw materials, which allows for rapid delivery and tight-tolerance production matched to customized specifications.

For offshore wind projects, where insulation components often require precise cutouts, mounting holes, or profile shaping to fit converter housings, this combination of raw material depth and CNC precision—including high-precision CNC milling, precision carving, laser cutting, and wire cutting—reduces the lead time between design specification and installed component.

Quality Assurance for Renewable Energy Supply Chains

Given the safety-critical nature of converter insulation, procurement teams reasonably require documented quality assurance. XYH holds IATF 16949:2016 Quality Management System Certification for the production of insulating plastic materials, alongside ISO 9001:2015 and ISO 14001:2015 certifications covering the production, processing, and sales of electronic insulation materials and engineering plastic materials. Product compliance is further supported by EU RoHS Hazardous Substance Testing Compliance, REACH Chemical Environmental Compliance, and SGS Certified Product Safety Testing Reports.

These certifications matter in renewable energy sourcing decisions because they provide third-party verification of both the manufacturing process and the chemical safety profile of the materials being installed in long-service-life offshore assets.

Matching Material Selection to Application Requirements

Selecting an epoxy laminate for offshore wind converter frames ultimately requires balancing three factors: dielectric performance under humid conditions, mechanical strength under vibration and load, and thermal stability under continuous electrical operation. The 3240 Epoxy Glass Laminated Sheet addresses the baseline requirements of humidity resistance and voltage insulation documented under IEC 60893, while the EPGC series extends thermal and tracking-index performance for higher-demand converter zones.

XYH Plastic Insulation’s positioning as an integrated manufacturer—combining raw sheet production, CNC custom fabrication, and global logistics—reflects a broader industry pattern in which renewable energy equipment manufacturers increasingly seek suppliers capable of delivering both material-grade documentation and application-specific machining in a single supply relationship, rather than sourcing raw sheets and fabrication separately. For converter frame designs where insulation failure carries significant offshore maintenance costs, materials with documented dielectric strength, verified moisture resistance data, and recognized international standard compliance provide the technical basis for informed specification decisions.
