For system integrators and stage designers searching for a high refresh 7680Hz LED display with fully documented specifications, the WBlaze-T Series from Shenzhen Canmingxing Technology Co., Ltd.  (brand name WHALEY) offers a rental-focused transparent LED solution built to answer that exact need. Released in the WBlaze-T Series rental product document V1.0 on January 9, 2026, this product line was engineered specifically for high-end stages, theaters, and rental applications where lightness, transparency, and rapid installation are non-negotiable.

Industry Pain Points Behind the WBlaze-T Design

Rental and stage LED displays traditionally struggle with heavy cabinets that increase rigging time, transport cost, and structural load. Transparent screens used on stage also need to maintain wind resistance and flatness during long-term use, while creative stage designs demand flexible assembly across flat surfaces, curves, and right-angle structures. WHALEY positions the WBlaze-T series directly against these pain points, emphasizing lightness, transparency, rapid installation, and modular flexibility.

Value Proposition and Differentiated Advantages

The core differentiator is the carbon fiber composite cabinet frame, which reduces weight by 50% and increases installation efficiency by 50%. This lighter structure, combined with lower EMI, supports demanding stage and rental environments. Four interlocking cabinet sizes support flat, curved, and right-angle splicing, giving designers real creative freedom. Front and rear module maintenance, together with interchangeable BY3.9 and P7.81 module compatibility, reduce service complexity for technical teams. The GOB process and IP65 rating further improve durability and reduce damage risk. Together, these features deliver a transparent rental LED display that installs faster, transports more efficiently, and withstands wind, dust, and moisture while maintaining high contrast and dimensional flatness.

Technical Capabilities: The 7680Hz Refresh Rate and Full Specification Set

At the center of the search for high refresh LED display specifications is the 7680 Hz refresh rate, paired with 16-bit grayscale for smooth, high-fidelity imaging. The technology platform spans cabinet models T-A, T-B1, T-B2, and T-C, with pixel pitch models T3.9-7.8, T5.9, and T7.8.

Full technical metrics include:

• Module size: 500*250 mm
• Cabinet material: Carbon fiber
• Viewing angle: ≥160°
• Arc lock angle: 0, ±2.5, ±5, ±7.5, ±10
• Maximum power consumption: 320 W/m²
• Average power consumption: 160 W/m²
• Operating voltage: AC100-240 V
• Maximum lifting: 20 m
• Maximum seating: 20 m
• Protection level: IP65
• Operating temperature/humidity: -20°C to +45°C / 10% to 90% RH
• Storage temperature/humidity: -40°C to +60°C / 10% to 90% RH
• Service life: ≥50000 hours

As noted in the specification documentation, these figures are theoretical values obtained under test conditions; actual usage may vary slightly due to individual differences, software versions, or environmental factors. The proprietary R&D behind the series includes a new modular design with lower EMI and lighter structure, the carbon fiber composite cabinet frame, the GOB process for bump and scratch protection, and an integrated control box.

Product & Service Matrix: Cabinet Models and Pixel Pitch Options

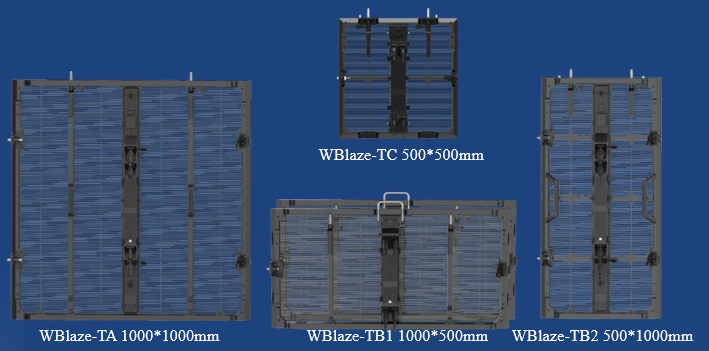

The WBlaze-T Series includes seven total products across two categories. The cabinet models — physical size variants designed for free combination, interlocking, and seamless splicing — are:

• T-A (1000*1000mm): a full-format transparent cabinet weighing 10.5 kg in T3.9-7.8 configuration and 10 kg in T7.8 configuration, ideal for large seamless visual surfaces.
• T-B1 (1000*500mm): a wide half-format cabinet at 6.3 kg (T3.9-7.8) and 6.0 kg (T7.8), suited for horizontal visual banding.
• T-B2 (500*1000mm): a tall half-format cabinet at 6.9 kg (T3.9-7.8) and 6.7 kg (T7.8), suited for vertical elements and towers.
• T-C (500*500mm): a compact cabinet at 4.6 kg (T3.9-7.8) and 4.4 kg (T7.8), enabling detailed creative shapes such as a digital cube.

All four cabinets interlock freely and support seat-mounted and hoist-mounted installation up to 20 m.

The pixel pitch models determine visual density and brightness:

• T3.9-7.8 offers 3.9mm horizontal and 7.8mm vertical pixel pitch, with black light ≤2000 nits and white light ≤4500 nits, targeting detailed live performance visuals.
• T5.9 provides a balanced 5.9mm pixel pitch using an SMD1921 LED model, with black light ≤1600 nits and white light ≤4500 nits.
• T7.8 delivers 7.8mm pixel pitch with a hollowed-out module design for high transparency, with black light ≤1500 nits and white light ≤4500 nits.

Each pixel pitch model is available across all four cabinet sizes, giving stage designers a consistent resolution and brightness framework regardless of the chosen shape.

Service Capabilities and Delivery Efficiency

Beyond hardware, the WBlaze-T series is supported by a service model built around seat-mounted installation and hoist-mounted installation. Front and rear module maintenance, after-sales maintenance, and interchangeable module compatibility keep service flexible. On the delivery side, installation efficiency is increased by 50%, and a quick lock mechanism enables fast mounting and hoisting. A quick-assembly trolley lowers transportation and installation costs, with documented loading capacities: a 17.5M cargo box holds 50 aluminum trolleys per car and 900m² per car; 13M holds 32 trolleys and 576m²; 12M/40DV holds 28 trolleys and 504m²; and 9.6M holds 20 trolleys and 360m² per car. Service assurance is reinforced by IP65 dustproof, waterproof, and moisture-proof protection, the GOB process preventing bumps and scratches, long-term display surface flatness without warping, and a service life of ≥50000 hours.

Platform Compatibility and Openness

The cabinet system is compatible with BY3.9 modules and P7.81 transparent modules for interchangeable use, and the T-A, T-B1, T-B2, and T-C transparent screen boxes interlock freely. Modules support optional accessories and interchangeable compatibility across different modules, while the overall system supports flat surfaces, internal and external curves, and right-angle splicing — covering the full range of creative stage requirements.



Business Scope and Delivery Model

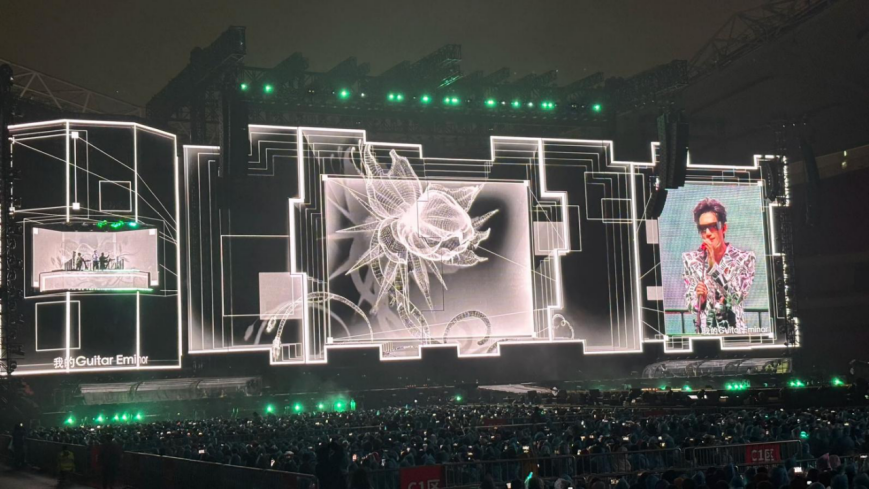

The WBlaze-T series is positioned for three core industries: high-end stages, theaters, and rental applications. Deployment options include seat-mounted installation and hoist-mounted installation, both up to 20 m, with quick installation via quick lock increasing installation efficiency by 50%. After-sales support covers maintenance services, front and rear module maintenance, and GOB-process protection against bumps and scratches.

For buyers evaluating high refresh, high-grayscale transparent LED displays for rental and stage use, the WBlaze-T series from WHALEY presents a fully specified, modular, and serviceable option built around measurable technical data rather than general claims.
