Buyers searching for a GOB process roll-up LED display are typically weighing three priorities at once: protective build quality, ease of transport or installation, and a price point that makes sense for the venue. Whaley LED, the display brand of Shenzhen Canmingxing Technology Co., Ltd., addresses this exact intersection through its LED Rolling Screen Series, a category built specifically around rollable, foldable, and lift-controlled products using GOB (Glue on Board) technology. This review examines the specifications, protective engineering, and application scope of these roll-up products based on the company’s own technical documentation.

What GOB Technology Contributes to Roll-Up Displays

GOB (Glue on Board) is one of the core technology platforms listed among Whaley LED’s proprietary R&D capabilities. The company describes GOB as delivering impact resistance and waterproofing at the board level — a foundational reason it is paired with flexible, rollable screen structures. Because roll-up and foldable screens are handled, transported, and reassembled far more often than fixed installations, this glue-based protection layer is directly relevant: it reduces the risk of pixel damage during folding, rolling, and repeated setup cycles. Whaley LED’s broader technical capability system also lists foldable and rollable screen structures and modular, customizable product designs as company-wide differentiators, confirming that the roll-up format is a deliberate engineering focus rather than a one-off product.

LED Rolling Screen Series: Product Line Positioning

The LED Rolling Screen Series is positioned by the company as a set of “rollable, foldable, and lift-controlled LED display products built on GOB technology, designed for events, stages, retail shelves, gateways, and outdoor cinema where portability, protection, and quick setup are required.” This positioning statement is important for buyers evaluating affordability: the line is explicitly designed for quick setup and portability, which reduces the labor and installation overhead that often drives up the total cost of an LED display project.

Rolling Fast: Auto-Lifting LED

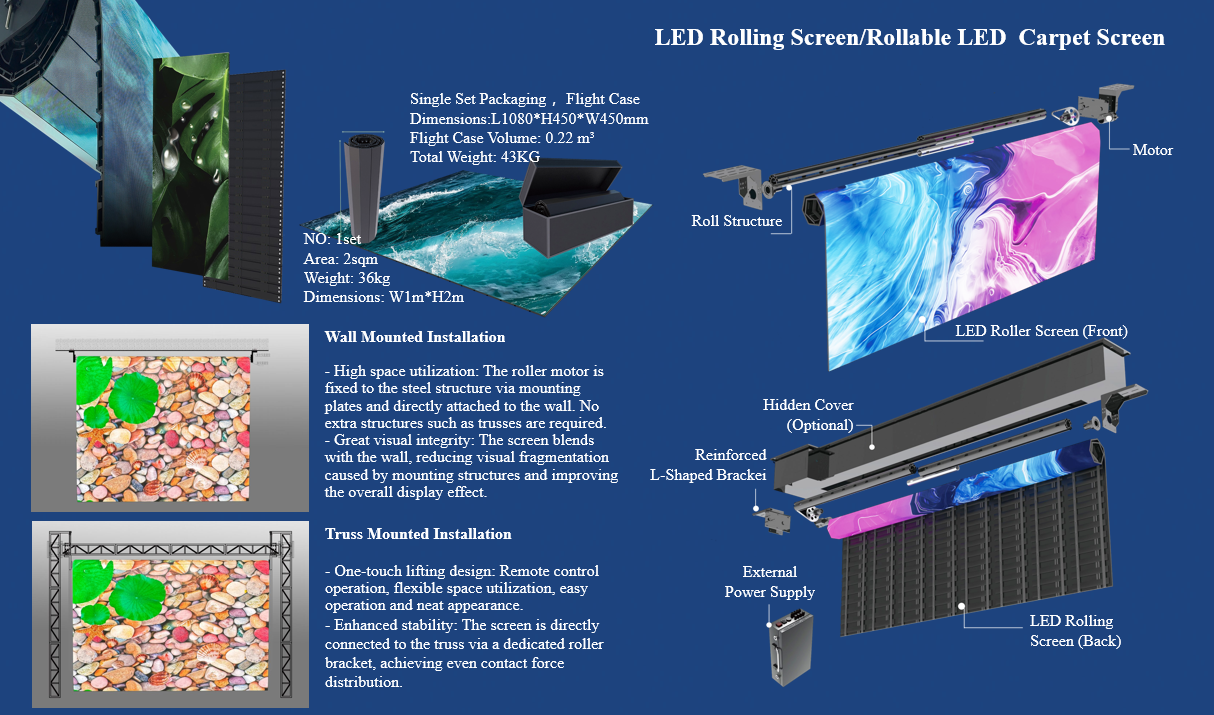

One entry in this series, Rolling Fast: Auto-Lifting LED, combines GOB technology with a mechanical scroll and lift control system housed in an integrated flight case. Key specifications include:

• One-button lift via remote control, requiring no installation or debugging
• 36V/24V DC safe power supply
• IP65 waterproof rating (front) and IP41 (rear)
• Model P15: 4.5 m² screen area, H3m × W1.5m screen size, 350kg weight
• Model P20: 6 m² screen area, H3m × W2m screen size, 430kg weight
• Custom configuration: up to 20 m² screen area, max 6m × 3m screen size, up to 800kg

This design is aimed at temporary events such as weddings, press conferences, and parties, where teams need a display that is plug-and-play and protected during transport by its own flight case — eliminating the need for separate crating or professional installation crews.

WArt-R Series Roll-up Products

The WArt-R Series Roll-up Products represent the most detailed roll-up offering in Whaley LED’s catalog, built on an HOB solution and an ultra-thin aluminum alloy structure measuring just 17mm thick. The series is positioned for commercial, cultural, transportation, residential, and education spaces, and its specification sheet is extensive:

• Models: WA-R0.7, WA-R0.9, WA-R1.2, WA-R1.5, WA-R1.9, WA-R2.6, WA-R3.9
• Pixel pitch ranging from 0.78mm (R&D) up to 3.91mm
• 24V–48V low-voltage DC input for enhanced safety
• 140°–160° viewing angle via the advanced DOB solution
• Magnetic back assembly, allowing quick installation without support feet
• Screwless high-precision surface for seamless splicing
• 2000 kg/m² load capacity, tested to 5,000 kg pressure and car weight
• Built-in interactive chip with 0.016s response time
• IP54/IP21 rating for dust and water resistance
• Refresh rate of 3,840–7,680Hz
• Contrast ratio of 10,000:1
• Cabinet weight of 10kg, with an aluminum profile cabinet material
• Working temperature range of -20°C to +50°C, humidity 10%-85% RH

The combination of a foldable and rollable design, magnetic back assembly, and a screwless surface directly reduces on-site labor time, since installers do not need support feet or screw-based mounting to achieve a flat, seamless image. For buyers comparing total project cost rather than unit price alone, this installation simplicity is a meaningful part of the value equation.

Where Roll-Up GOB Displays Are Applied

According to Whaley LED’s documentation, the WArt-R Series and related roll-up products serve a wide span of environments:

• Commercial spaces: shopping malls, hotel lobbies
• Cultural and entertainment venues: theaters, concert halls, theme parks
• Transportation hubs: airports, subway stations
• Residential and office spaces: high-end villas, creative offices
• Education sector: classrooms, audio-visual screening rooms

The Rolling Fast auto-lifting product, by contrast, is scoped more narrowly to weddings, press conferences, and events and temporary installations, reflecting its design intent as a fast-deploy solution rather than a fixed architectural fixture.

Company Context and Market Scale

Whaley LED operates as an LED display product manufacturer and solution provider headquartered in Guangzhou, with a smart manufacturing location in Shenzhen. The company states it has drawn on 12 years of in-depth experience meeting the demands of China’s domestic display screen market and describes itself as having become a manufacturer of carbon fiber screens in that market, with plans in 2025 to expand into European, American, and other international markets. Its documented service scale includes coverage of 3 million precision retail stores, service to 4,700 commercial complexes, and 1.5 million square meters of glass curtain wall applications across 7 major industries and 28 segment scenarios.



Conclusion

For organizations evaluating a GOB process roll-up LED display, Whaley LED’s LED Rolling Screen Series — spanning the Rolling Fast: Auto-Lifting LED and the WArt-R Series Roll-up Products — offers a documented combination of GOB-based impact resistance and waterproofing, low-voltage DC safety, magnetic and screwless installation, and wide viewing angles, all engineered for environments that demand both portability and protection. The specifications above, drawn directly from the company’s technical documentation, give buyers a concrete basis for comparing rollable display options against their own budget and deployment requirements.
