Addressing the Pain Points of Rental and Stage LED Displays

Rental and stage LED display projects continue to face a familiar set of operational challenges heading into 2025 and beyond: heavy cabinets that slow down rigging, drive up transport costs, and add structural load; transparent screens that must maintain wind resistance and flatness over long-term outdoor and indoor use; and creative stage designs that demand flexible assembly across flat surfaces, curves, and right-angle structures. Any product review of a rental LED display line in this category needs to evaluate how well these pain points are actually solved in the field, not just on a spec sheet.



Shenzhen Canmingxing Technology Co., Ltd./HK Whaley Technology Limited, operating under the brand WHALEY, has positioned its WBlaze-T series directly against these challenges. The series is built as a rental LED display line for high-end stages, theaters, and rental applications, with an explicit emphasis on lightness, transparency, rapid installation, and modular flexibility. The WBlaze-T Series rental product document V1.0 was released January 9, 2026, formalizing the technical specifications reviewed here.

The WBlaze-T Series: Design Philosophy and Value Proposition

At the core of the WBlaze-T value proposition is a simple promise: deliver a transparent rental LED display that installs faster, transports more efficiently, and withstands wind, dust, and moisture while maintaining high contrast and dimensional flatness. Several differentiated design choices support this claim:

• A carbon fiber composite cabinet frame reduces weight by 50% and increases installation efficiency by 50% compared to conventional cabinets.
• Lower EMI and a lighter overall structure make the system suitable for demanding stage and rental environments.
• Four interlocking cabinet sizes support flat, curved, and right-angle splicing, giving designers real assembly freedom.
• Front and rear module maintenance, combined with interchangeable BY3.9 and P7.81 module compatibility, reduces service complexity for technicians in the field.
• The GOB process (Glue on Board) and an IP65 protection rating improve durability and reduce damage risk—two factors that are central to any credible review of GOB process LED displays in 2025.

GOB Process and Technical Capabilities Under Review

The GOB process is one of the defining technical features of the WBlaze-T series, applied specifically for bump and scratch protection. Paired with the carbon fiber cabinet material, this construction method supports a set of measurable performance metrics:

• Refresh rate: 7680 Hz
• Grayscale: 16 bit
• Module size: 500*250 mm
• Viewing angle: ≥160°
• Arc lock angle: 0, ±2.5, ±5, ±7.5, ±10
• Maximum power consumption: 320 W/m²; average power consumption: 160 W/m²
• Operating voltage: AC100-240 V
• Maximum lifting/seating height: 20 m
• Protection level: IP65
• Operating temperature/humidity: -20°C to +45°C / 10% to 90% RH
• Storage temperature/humidity: -40°C to +60°C / 10% to 90% RH
• Service life: ≥50,000 hours

As the technical documentation notes, these figures are theoretical values obtained under test conditions; actual usage may vary slightly due to individual differences, software versions, or environmental factors. This transparency about testing conditions is itself a useful signal for anyone conducting a rigorous review of the product line.

Cabinet Models: Flexible Configurations for Every Stage

The WBlaze-T series offers four interlocking cabinet models, each addressing a distinct layout need while sharing the same carbon fiber frame, GOB process, IP65 protection, and quick lock mounting.

T-A (1000*1000mm)

The full-format T-A cabinet is designed for large flat or curved LED screen areas. It weighs 10.5 kg in the T3.9-7.8 configuration and 10 kg in the T7.8 configuration, with an air-resistance frame version at 15.5 kg. It interlocks with T-B1, T-B2, and T-C for seamless splicing and supports flat, internal/external curve, and right-angle assembly.

T-B1 (1000*500mm)

This wide half-format cabinet targets horizontal layout flexibility, weighing 6.3 kg (T3.9-7.8) or 6.0 kg (T7.8), and interlocks with T-A, T-B2, and T-C.

T-B2 (500*1000mm)

The tall half-format cabinet supports vertical layout configurations, weighing 6.9 kg (T3.9-7.8) or 6.7 kg (T7.8), and interlocks with T-A, T-B1, and T-C.

T-C (500*500mm)

The compact cabinet enables detailed or irregular screen shapes, including structures such as a digital cube, at 4.6 kg (T3.9-7.8) or 4.4 kg (T7.8), interlocking with T-A, T-B1, and T-B2.

Pixel Pitch Options: Balancing Detail, Brightness, and Transparency

Beyond cabinet geometry, the WBlaze-T series offers three pixel pitch models, each available across all four cabinet sizes.

T3.9-7.8

With a 3.9mm horizontal and 7.8mm vertical pixel pitch, a 1/8 scanning method, and 128*32 module resolution, this model delivers black light brightness ≤2000 nits and white light ≤4500 nits for detailed stage and theater visuals.

T5.9

Using the SMD1921 LED model with a 1/7 scanning method and 84*42 module resolution, T5.9 offers a balanced 5.9mm pixel pitch with black light ≤1600 nits and white light ≤4500 nits.

T7.8

Featuring a hollowed-out module design at 1/8 scanning and 64*32 module resolution, T7.8 emphasizes high transparency with black light ≤1500 nits and white light ≤4500 nits.

Service and Delivery Capabilities

For rental operators, delivery logistics matter as much as display performance. The WBlaze-T series uses a quick-assembly trolley to lower transportation and installation costs, with loading capacities including 50 aluminum trolleys/900m² per 17.5M cargo box, 32 trolleys/576m² per 13M box, 28 trolleys/504m² per 12M/40DV box, and 20 trolleys/360m² per 9.6M box. Service assurance combines IP65 protection, GOB bump/scratch prevention, long-term flatness without warping, and a service life rating of ≥50,000 hours, all backed by front-and-rear module maintenance and after-sales support.

Industry Adaptation and Use Cases

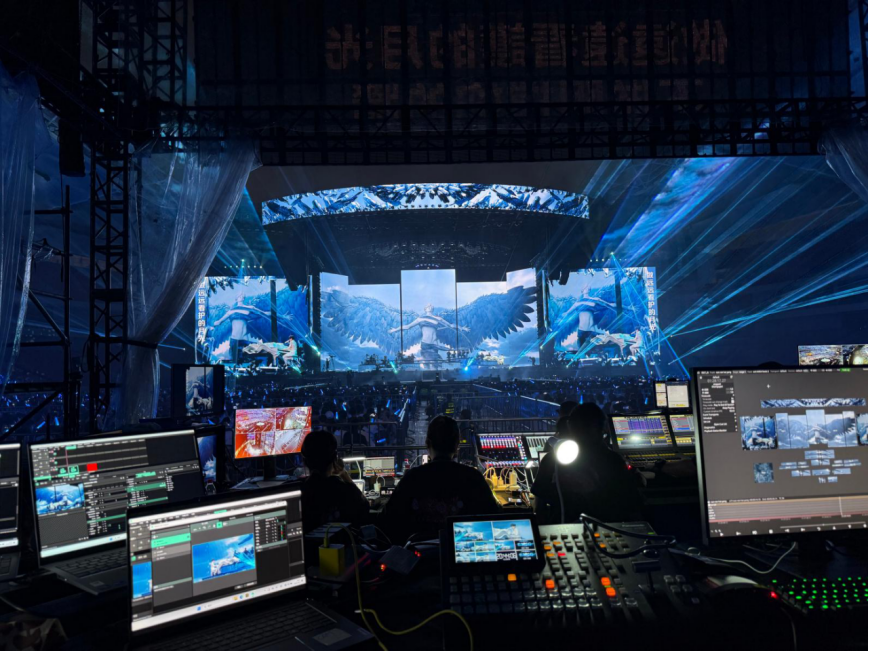

The WBlaze-T series is adapted for high-end stages requiring large seamless visual surfaces or detailed creative shapes, theaters needing transparent scenic display, and rental applications where fast build/strike cycles and dense transport loading are essential. Seat-mounted and hoist-mounted installation options up to 20 m extend its usability across varied venue configurations.

Conclusion

For decision-makers evaluating GOB process LED displays, the WBlaze-T series from WHALEY combines documented technical specifications, modular cabinet interlocking, and logistics-oriented delivery capabilities into a coherent rental display solution designed around the industry’s core pain points of weight, durability, and installation speed.
